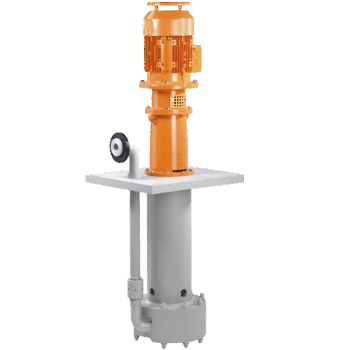

VERTICAL CHEMICAL PUMP TNP-KL

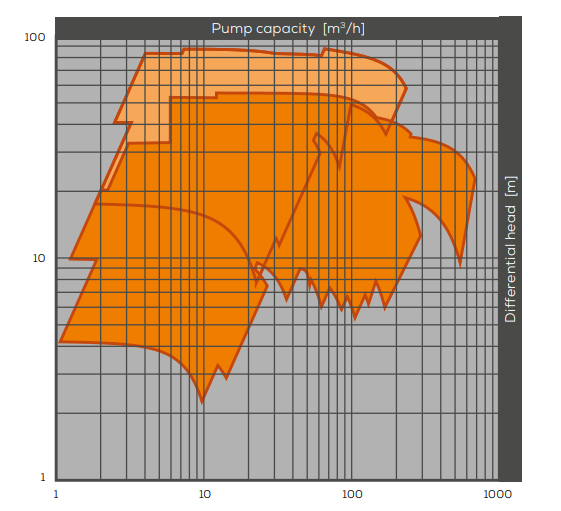

PERFORMANCE DATA
| Capacity [Q] up to: | 700 m³/h |
| Differential head [H] up to: | 90 m |
| Operating temperature: | 0 to 100 °C |
| Operating pressure [p] up to: | 10 bar |
| DISCHARGE NOZZLE | DN 32 to DN 150 |
| Motor rating up to: | 75 kW |
| Setting depths: | 400 to 3000 mm |
| Setting depths incl. suction pipe: | up to 4600 mm |
CONSTRUCTION
| Main materials | PP PE-UHMW PVDF |
| Impeller | Closed Semi-open Vortex design (depending on pump size) |
| Shaft seal | Labyrinth seal Single or double mechanical seal |
| Plain bearing (foot bearing) | SSiC |
| Options | Extension of setting depth via suction pipe Suction strainer Sole plate to customer specifications Position and design of suction-side flange to customer specifications |
| Explosion protection (ATEX) | Meets the requirements of Directive 2014/34/EU for use in explosion hazard zones |
