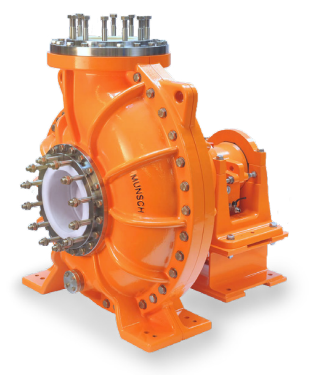

NPC-MAMMUT CHEMICAL PROCESS PUMP
NPC-MAMMUT CHEMICAL PROCESS PUMP
With mechanical seal
For mega-pumping tasks beyond the norm. Its extremely robust design and large wall thicknesses
coupled with excellent energy efficiency and suction behaviour make the NPC Mammut a problem
solver for extreme tasks as encountered in high-capacity exhaust gas scrubbers, for instance.
The NPC Mammut offers unequalled performance when it comes to pumping corrosive and solidscarrying fluids with flow rates of 1000 m3/h to 5000 m3/h and high differential heads.
Casing dimensions, fitting dimensions and design to SO2858/ISO5199 (complemented by further pump sizes) Also available as close-coupled pump CS-B.

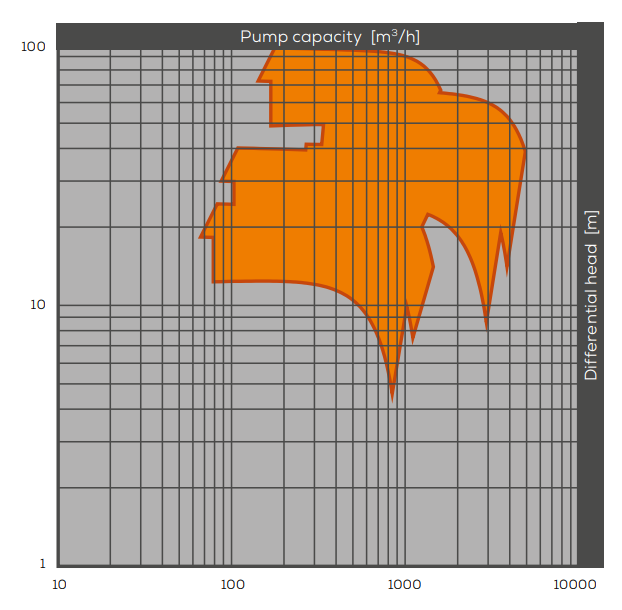

PERFORMANCE DATA
| Capacity [Q] up to: | 5000 m³/h |
| Differential head [H] up to: | 100 m |
| Operating temperature: | 0 to 100 °C |
| Operating pressure [p] up to: | 10 bar (extended service range on request) |
| DISCHARGE NOZZLE | DN 250 to DN 400 |
| Motor rating up to: | 1 MW |
CONSTRUCTION
| Main materials | PE-UHMW PP PVDF |
| Impeller | Closed |
| Shaft seal | Metal-free mechanical seal with SSiC rotating and stationary seal rings Available as single or double mechanical seal Various flushing options |
| Explosion protection (ATEX) | Meets the requirements of Directive 2014/34/EU for use in explosion hazard zones |
