STANDARDIZED CHEMICAL PUMP NP
STANDARDIZED CHEMICAL PUMP NP
With mechanical seal
Developed for the harsh service conditions of steel pickling lines, this all-round talent has been rendering decades of excellent service in the most diverse corrosive and abrasive service environments in all industries. Featuring a metal-free mechanical seal perfectly matched to the application and optimised hydraulics, the NP stands for reliability, simplicity and efficiency. This pump has paved the way for our worldwide success and consolidated our reputation as a reliable partner for challenging pumping tasks.
Casing dimensions, fitting dimensions and design to SO2858/ISO5199 (complemented by further pump sizes) Also available as close-coupled pump CS-B.

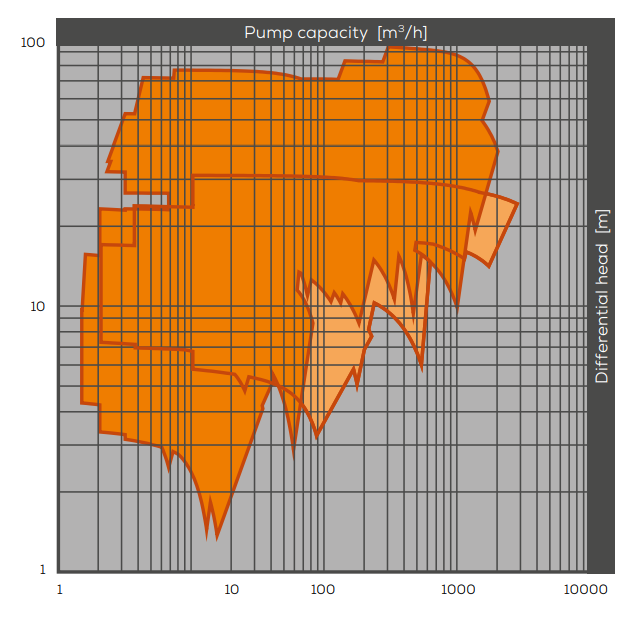

PERFORMANCE DATA
Capacity [Q] up to: | 1200 m³/h |
Differential head [H] up to: | 100 m |
Operating temperature: | -20 to 110 °C |
Operating pressure [p] up to: | 10 bar |
DISCHARGE NOZZLE | DN 25 to DN 250 |
Motor rating up to: | 200 kW |
CONSTRUCTION
Main materials | PP PE-UHMW PVDF |
Impeller | Closed Semi-open Vortex design (depending on pump size) |
Shaft seal | Metal-free mechanical seal with SSiC rotating and stationary seal rings Available as single or double mechanical seal |
Explosion protection (ATEX) | Meets the requirements of Directive 2014/34/EU for use in explosion hazard zones |
