Maximum Corrosion Resistance Pump!
Safe Design with Intrinsically Explosion-proof Specification. Highly corrosion-resistant polypropylene (PP-GF) is used for the center body.
A diaphragm pump that can be used to transport chemicals and a variety of conveying liquids.
Fully self-suction type that can pump out fluid efficiently, with no pump-priming required.
The safety structure does not require explosion-proof measures, so it can be used anywhere.
The NDP-P50 series has a nominal diameter of 2″ (50 mm) and a maximum flow rate of approximately 630 L/min.
The maximum size solid is 8 mm or less.
■ Main Applications
Supply of Chemicals, Pure Water, and Waste Liquids/Transfer of Flammable Liquids in Explosion-proof Areas/Transfer of Food Ingredients and Additives/Supply of Pipe Cleaning Solution/Collection of Waste Oil and Wastewater/Transfer of Alcohol, Disinfectants and Solvents
Features
■ Highly Corrosion-resistant Polypropylene (PP-GF) is Used for the Center Body.
The product is resistant to corrosion and rust, making it suitable for transferring chemicals and a variety of conveying liquids.
■ Yamada’s Proprietary Design Air Switch Valve “C-Spool”
The air switch valve in the center section of the diaphragm pump is completely oil-free, so it does not require regular lubrication.
The operation assist using a C-spring suppresses stoppages during operation, and achieves stable operation.
◆ Air Switch Valve “C-Spool”
| The C-spring Prevents Stoppages during Operation Achieves stable operation. | Equipped with a Reset Button Downtime due to pump stoppages in the case of wear of the air switch valve is kept to a minimum. |
 |  |
| Completely Oil-free Both the air switch valve and the pilot valve that activates the air switch valve at the stroke limit are designed to be oil-free. Does not require regular lubrication. | Simple Replacement No need to disassemble the pump when replacing it. |
 |
Specifications

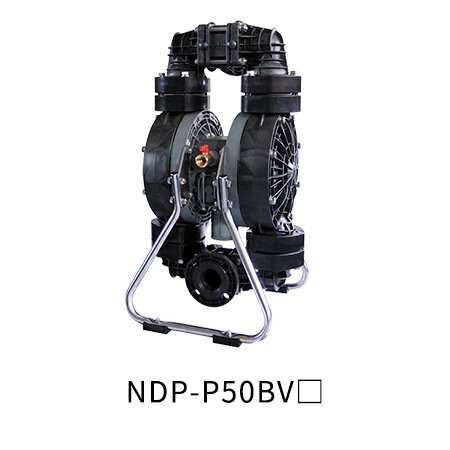

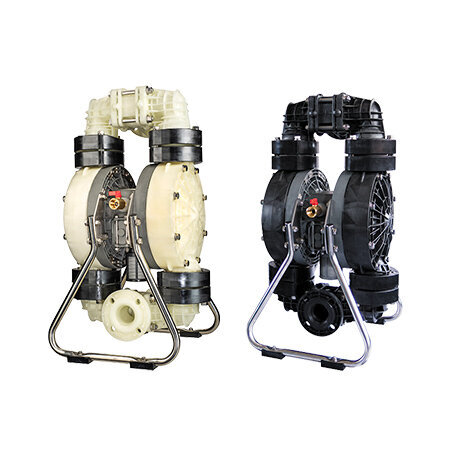

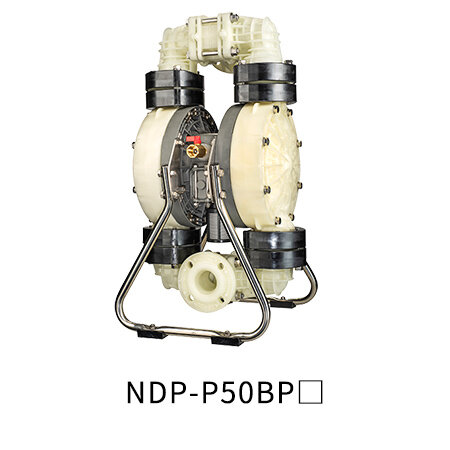

| Body Material | P: GF Polypropylene （PP-GF） | V: CF Kynar(R) （PVDF-CF） | |
| Diaphragm Material | |||
| C: Neoprene (CR) | NDP-P50BPC （854827） | － | |
| N: Buna N (NBR) | NDP-P50BPN （854828） | － | |
| E: EPDM | NDP-P50BPE （854829） | NDP-P50BVE （854843） | |
| V: Viton(R) (FKM) | NDP-P50BPV （854830） | NDP-P50BVV （854844） | |
| T: PTFE | NDP-P50BPT （854831） | NDP-P50BVT （854845） | |
| H: Hytrel(R) (TPEE) | NDP-P50BPH （854832） | NDP-P50BVH （854846） | |
| S: Santoprene(R) (TPO) | NDP-P50BPS （854833） | NDP-P50BVS （854847） | |
| H/T: Hytrel(R) (TPEE) | NDP-P50BPH/T （854834） | － | |
| W: PTFE+EPDM | NDP-P50BPW (855305) | NDP-P50BVW (855308) | |
| Body Material | |||
| Ball Valve | NDP-P50B○H/T,B○W: PTFE Others: Same as the diaphragm material | ||
| Valve Seat | PP | PTFE | |
| Valve Stopper | Same as the body material (integrated type) | ||
| Center Disk | PP-GF SCS13(Insert material) | PVDF-CF SCS13(Insert material) | |
| Specifications | |||
| Nominal Diameter | 2″（50 mm） | ||
| Material Connection | Suction Port | JIS flange 10K 50A equivalent | |
| Discharge Port | JIS flange 10K 50A equivalent | ||
| Air Connection | Supply Port | Rc 3/4 | |
| Exhaust Port | Rc 1 | ||
| Air Supply Pressure | 0.2~0.7 MPa *1 | ||
| Maximum Discharge Pressure | 0.7 MPa | ||
| Water Discharge/Cycle | NDP-P50B○T: 2300mL *2 | ||
| Maximum Flow Rate | NDP-P50B○T: 560 L/min *3 | ||
| Maximum Air Consumption | NDP-P50B〇T: 5500 L/min （ANR） | ||
| Maximum Size Solid | Maximum 8 mm | ||
| Suction Head Lift | NDP-P50B○T: 3 m Others: 5 m | ||
| Net Weight | NDP-P50BPW:34.0 kg | NDP-P50BVW:40.0 kg | |
*1 The maximum supply air pressure for a type with a resin-made pump body will depend on the liquid temperature.
*2 The water discharge is provided as a rough approximation only. It will differ depending on the usage conditions, etc.
*3 Maximum flow rate is a value indicating the pump capacity. We recommend selecting a size that allows some leeway, taking into account the impact on the life span of the diaphragm.
