Maximum Corrosion Resistance Pump!
Safe Design with Intrinsically Explosion-proof Specification. Highly corrosion-resistant polypropylene (PP-GF) is used for the center body. A diaphragm pump that can be used to transport chemicals and a variety of conveying liquids.
Fully self-suction type that can pump out fluid efficiently, with no pump-priming required.
The safety structure does not require explosion-proof measures, so it can be used anywhere. The NDP-P25 series has a nominal diameter of 1″ (25 mm) and a maximum flow rate of approximately 160 L/min. The maximum size solid is 3 mm or less.
■ Main Applications
Supply of Chemicals, Pure Water, and Waste Liquids/Transfer of Flammable Liquids in Explosion-proof Areas/Transfer of Food Ingredients and Additives/Supply of Pipe Cleaning Solution/Collection of Waste Oil and Wastewater/Transfer of Alcohol, Disinfectants and Solvents
Features
■ Highly Corrosion-resistant Polypropylene (PP-GF) is Used for the Center Body.
The product is resistant to corrosion and rust, making it suitable for transferring chemicals and a variety of conveying liquids.
■ Yamada’s Proprietary Design Air Switch Valve “C-Spool”
The air switch valve in the center section of the diaphragm pump is completely oil-free, so it does not require regular lubrication.
The operation assist using a C-spring suppresses stoppages during operation, and achieves stable operation.
◆ Air Switch Valve “C-Spool”
| The C-spring Prevents Stoppages during Operation Achieves stable operation. | Equipped with a Reset Button Downtime due to pump stoppages in the case of wear of the air switch valve is kept to a minimum. |
 |  |
| Completely Oil-free Both the air switch valve and the pilot valve that activates the air switch valve at the stroke limit are designed to be oil-free. Does not require regular lubrication. | Simple Replacement No need to disassemble the pump when replacing it. |
 |
Specifications

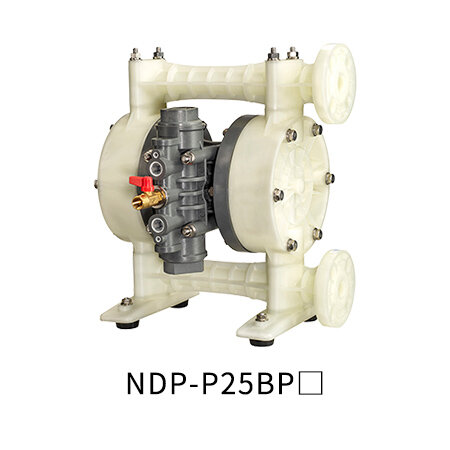

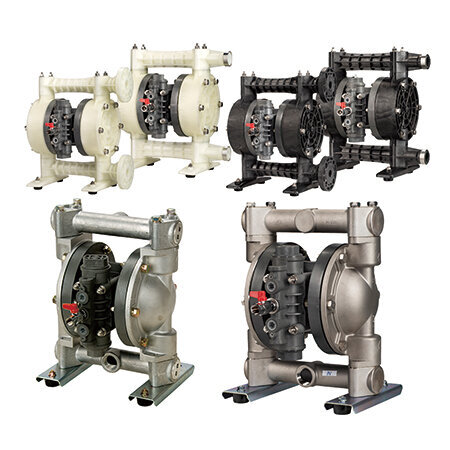

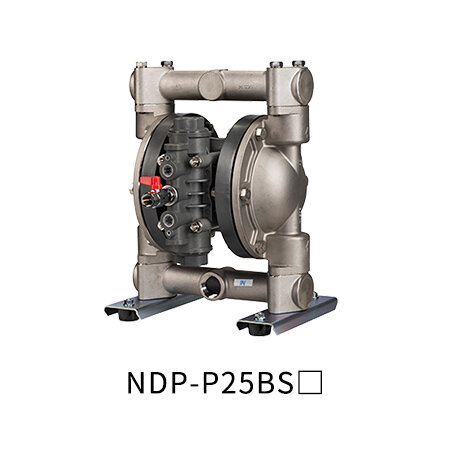

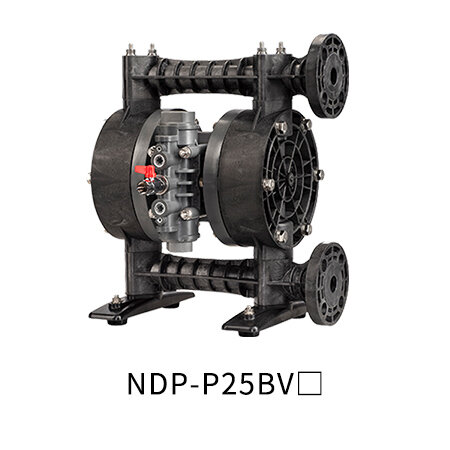

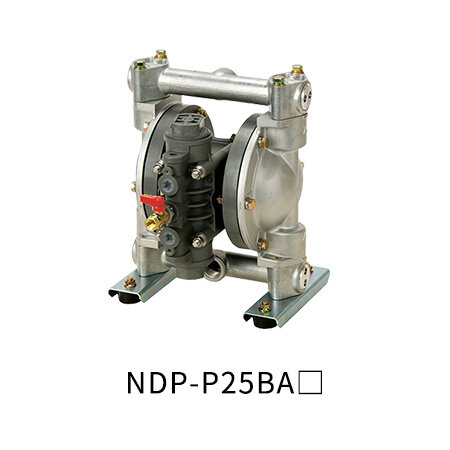

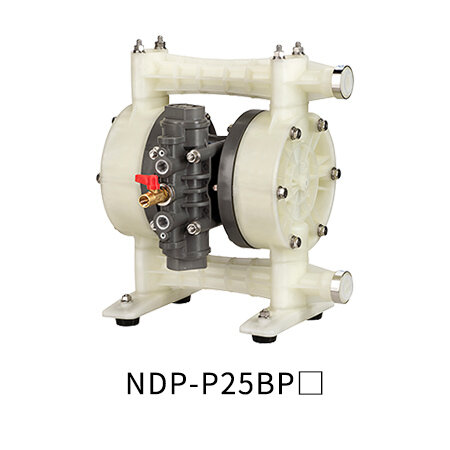

| Body Material | A:Aluminum （ADC12） | S:Stainless Steel （SCS14） | P:GF Polypropylene（PP-GF） | P:GF Polypropylene（PP-GF） | V: CF Kynar(R) （PVDF-CF） | V: CF Kynar(R)（PVDF-CF） | |
| Diaphragm Material | |||||||
| C: Neoprene (CR) | NDP-P25BAC （854115） | NDP-P25BSC （854129） | NDP-P25BPC （854157） | NDP-P25BPC-FL（854178） | － | － | |
| N: Buna N (NBR) | NDP-P25BAN （854116） | NDP-P25BSN （854130） | NDP-P25BPN （854158） | NDP-P25BPN-FL（854179） | － | － | |
| E: EPDM | NDP-P25BAE （854117） | NDP-P25BSE （854131） | NDP-P25BPE （854159） | NDP-P25BPE-FL（854180） | NDP-P25BVE （854950） | NDP-P25BVE-FL（854961） | |
| V: Viton(R) (FKM) | NDP-P25BAV （854118） | NDP-P25BSV （854132） | NDP-P25BPV （854160） | NDP-P25BPV-FL（854181） | NDP-P25BVV （854951） | NDP-P25BVV-FL（854962） | |
| T: PTFE | NDP-P25BAT （854119） | NDP-P25BST （854133） | NDP-P25BPT （854161） | NDP-P25BPT-FL（854182） | NDP-P25BVT （854952） | NDP-P25BVT-FL（854963） | |
| H: Hytrel(R) (TPEE) | NDP-P25BAH （854120） | NDP-P25BSH （854134） | NDP-P25BPH （854162） | NDP-P25BPH-FL（854183） | NDP-P25BVH （854953） | NDP-P25BVH-FL （854964 ） | |
| S: Santoprene(R) (TPO) | NDP-P25BAS （854121） | NDP-P25BSS （854135） | NDP-P25BPS （854163） | NDP-P25BPS-FL （854184） | － | － | |
| H/T: Hytrel(R) (TPEE) | NDP-P25BAH/T （854217） | NDP-P25BSH/T （854218） | NDP-P25BPH/T （854220） | NDP-P25BPH/T-FL （854221） | － | － | |
| Wetted Parts Materia | |||||||
| Ball Valve | NDP-P25B○H: NBR NDP-P20B○H/T: PTFE Others: Same as the diaphragm material | ||||||
| Valve Seat | SMS1025 | SUS316 | PP-GF | PVDF-CF | |||
| Valve Stopper | ADC12 | SCS14 | |||||
| Center Disk | NDP-P20BAT: A5056 Others: SUS316 | SUS316 | PP-GF SCS13 (Insert material) | PVDF-CF SCS13 (Insert material) | |||
| Specifications | |||||||
| Nominal Diameter | 1″ (25 mm) | ||||||
| Material Connection | Suction Port | Rc 1 | JIS flange10K 25A equivalent | Rc 1 | JIS flange 10K 25A equivalent | ||
| Discharge Port | |||||||
| Air Connection | Supply Port | Rc 3/8 | |||||
| Exhaust Port | Rc 3/4 | ||||||
| Air Supply Pressure | 0.2~0.7 MPa *1 | ||||||
| Maximum Discharge Pressure | 0.7 MPa | ||||||
| Water Discharge/Cycle | Fluorine resin diaphragm: 500 mL *2 Other diaphragm: 600 mL *2 | ||||||
| Maximum Flow Rate | 160 L/min *3 | ||||||
| Maximum Air Consumption | Fluorine resin diaphragm: 1800 L/min (ANR) Other diaphragm: 1600 L/min (ANR) | ||||||
| Maximum Size Solid | Maximum 3 mm | ||||||
| Suction Head Lift | NDP-P25B○T: 2 m Others: 5 m | ||||||
| Net Weight | 11.0 kg | 18.0 kg | 9.5 kg | 9.5 kg | 12.0 kg | 12.0 kg | |
*1 The maximum supply air pressure for a type with a resin-made pump body will depend on the liquid temperature.
*2 The water discharge is provided as a rough approximation only. It will differ depending on the usage conditions, etc.
*3 Maximum flow rate is a value indicating the pump capacity. We recommend selecting a size that allows some leeway, taking into account the impact on the life span of the diaphragm.
