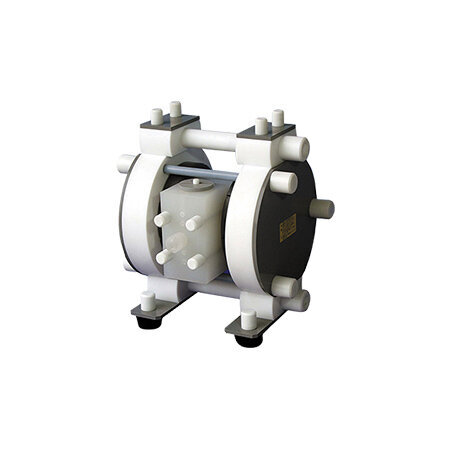

DP-Fs series
DP-Fs series
Corrosion-resistant Non-metallic Specification!
F series with Consideration to the Environment Where the Pump is Installed. A non-metallic model diaphragm pump that uses resin as the material even for the main parts. Even if the one-piece diaphragm is damaged, metal ion contamination is prevented, and the pump can be operated with peace of mind in a corrosive environment, so it is suitable for CMP slurry transfer. The air switch valve employs the non-metallic specification PEEK spool. Equipped by default with a hard seal that is resistant to temperature changes, and prevents liquid leakage, giving peace of mind.
■ Main Applications
Transfer of Flammable Liquids in Explosion-proof Areas/Transfer of Chemicals, Pure Water, and Waste Liquids
Features
■ Seal Specification
| Hard Seal Supports expansion and contraction of the resin due to the heat cycle, and is resistant to temperature changes. |
|
■ Non-Metallic Specification
| One-piece Diaphragm Center disk diaphragm with integrated center disk and diaphragm. Replacement is extremely simple, and it has excellent running costs. | Resin Center Rod By using resin as the center rod material, non-metal is achieved. |
|
|
■ Employs Non-Metallic Specification PEEK Spool
The air switch valve employs a non-metallic specification PEEK spool.
◆ Air Switch Valve “PEEK Spool”
| PEEK Resin Is Employed for the Spool Valve and Engineering Plastic Is Employed for the C-spring. This prevents operation failure due to rusting of the spool, or metal ion contamination that arises from transfer liquid penetrating the switch mechanism due to diaphragm damage. |
 |
Specifications
| Valve Shape and Model Number | |||||

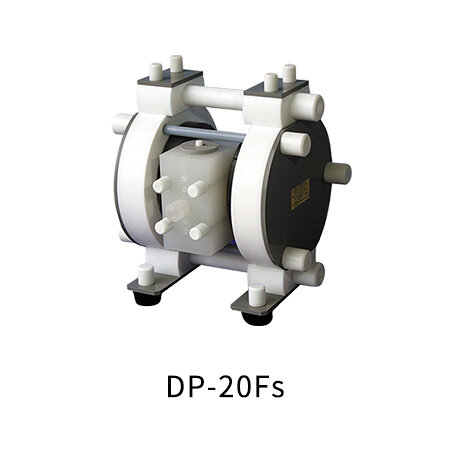

| Ball Valve | DP-10Fs | DP-10Fs | DP-20Fs | DP-20Fs | |
| Body Material | |||||
| Center Body | Polypropylene (PPG) | ||||
| Pump Body | PTFE | ||||
| Wetted Parts Material | |||||
| Diaphragm | PTFE | ||||
| Valve | |||||
| Valve Seat | |||||
| Valve Stopper | |||||
| Center Disk | Integrated with diaphragm | ||||
| Specifications | |||||
| Nominal Diameter | 3/8″ (10 mm) | 3/4″ (20 mm) | |||
| Material Connection | Suction Port | Rc 3/8 (F) | JIS flange 10K 10A equivalent | Rc 3/4 (F) | JIS flange 10K 20A equivalent |
| Discharge Port | |||||
| Air Connection | Supply Port | Rc 1/4 | |||
| Exhaust Port | Rc 3/8 | ||||
| Air Supply Pressure | 0.2~0.5 MPa *1 | ||||
| Maximum Discharge Pressure | 0.5 MPa | ||||
| Water Discharge/Cycle | 85 mL *2 | 160 mL *2 | |||
| Maximum Flow Rate | 20 L/min | 40 L/min | |||
| Maximum Air Consumption | 300 L/min （ANR） | 400 L/min （ANR） | |||
| Maximum Size Solid | Maximum 1 mm | Maximum 2 mm | |||
| Viscosity Limit | Maximum 1 Pa·s | Maximum 2 Pa·s | |||
| Temp Range | Ambient | 0～70 °C | |||
| Liquid Temperature | 0～80 °C | ||||
| Noise Level | 82 dB | 85 dB | |||
| Net Weight | 11.7 kg | 19.0 kg | |||
*1 The compressed air quality shall satisfy quality classes both 2 and 3 specified in “JIS B8392-1:2000 Compressed air for general use.”
(Maximum particle diameter: 1 μm, Maximum open air pressure: －20°C, Maximum oil concentration: 0.1 mg/m3)
The maximum supply air pressure of a type with a resin-made pump body depends on the liquid temperature.
*2 The water discharge is provided as a rough approximation only. The discharge will differ depending on factors such as the liquid to be transferred and the piping conditions.
