DP-FE series
DP-FE series
A Sensor Control Model that Minimizes the Risk of Stoppages during Operation!

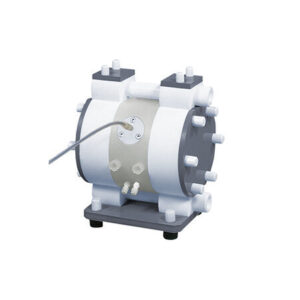

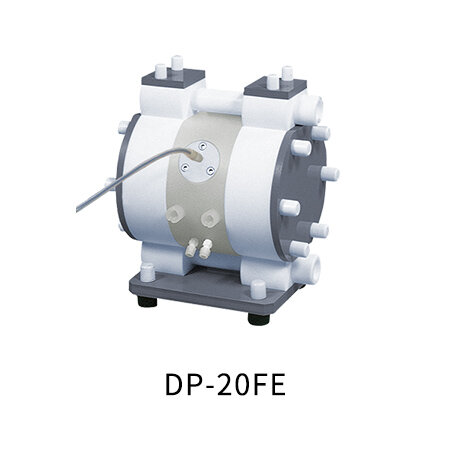

A resin type diaphragm pump that uses fluorine resin (PTFE/PFA) for the diaphragm and pump body, and resin (PPS/PP/HDPE) for the center body. The pump operates reliably at a low stroke, and operation can be managed using a PLC.
If transferring flammable chemicals, use the DP-FE/D series, which employs an explosion-proof specification fiber-optic stroke sensor.
The pump has a standard seal specification. The flat valve type is optional (built-to-order). Contact us for more details.
■ Main Applications
Transfer of Flammable Liquids in Explosion-proof Areas/Transfer of Chemicals, Pure Water, and Waste Liquids
Features
■ Seal Specification
| Standard Seal A PVC seal that absorbs changes in the dimensions of the join section for the fluorine resin pump. |
|
■ Sensor Control Model with Built-in Proximity Sensor that Transmits High Frequencies
The sensor built into the pump detects the stroke end, and the pump controller switches the solenoid valve to operate the pump.
◆ Sensor Control “Proximity Sensor”
| Sensor Control = Stable Reciprocating Motion A proximity sensor detects the stroke end of the diaphragm, and the pump controller receiving the sensor signal controls the switching of the center exhaust type 3-position 5-port solenoid valve. |
| Optional Counter Connection Enables Stroke Management By counting the number of center rod movements, it is possible to determine the timing for when parts replacement is required. |
|
Specifications
| Valve Shape and Model Number | ||||||||
| Ball Valve | － | DP-10FE | DP-10FE | DP-20FE | DP-20FE | DP-25FE | DP-38FE | |
| Flat Valve | DP-5FE | Built to order, so please contact us. | ||||||
| Body Material | ||||||||
| Center Body | PPS | Polypropylene (PPG) | HDPE | |||||
| Pump Body | PTFE | |||||||
| Wetted Parts Material | ||||||||
| Diaphragm PTFE | PTFE | |||||||
| Valve PTFE | ||||||||
| Valve Seat PTFE | ||||||||
| Valve Stopper PTFE | ||||||||
| Center Disk PFA | PFA, SUS316 (Insert material) | |||||||
| Specifications | ||||||||
| Nominal Diameter | 1/4″ (8 mm) | 3/8″ (10 mm) | 3/4″ (20 mm) | 1″ (25 mm) | ||||
| Material Connection | Suction Port | Rc 1/4 (F) | Rc 3/8 (F) *2 | JIS flange 10K 10A equivalent | Rc 3/4 (F) *2 | JIS flange 10K 20A equivalent | JIS flange 10K 25A equivalent | |
| Discharge Port | ||||||||
| Air Connection | Supply Port | Rc 1/4 x 2 (Shared supply and exhaust port x 2) *3 | Rc 1/2 x 2 (Shared supply and exhaust port x 2) *3 | |||||
| Exhaust Port | ||||||||
| Air Supply Pressure | 0.2~0.5 MPa *4 | 0.2~0.7 MPa *4 | ||||||
| Maximum Discharge Pressure | 0.5 MPa | 0.7 MPa | ||||||
| Water Discharge/Cycle | 18 mL *5 | 60 mL *5 | 200 mL *5 | 300 mL *5 | 560 mL *5 | |||
| Maximum Flow Rate | 12 L/min *6 | 20 L/min *6 | 52 L/min *6 | 65 L/min *6 | 85 L/min *6 | |||
| Maximum Air Consumption | 300 L/min (ANR) | 350 L/min (ANR) | 400 L/min (ANR) | 1400 L/min (ANR) | 1000 L/min (ANR) | |||
| Maximum Size Solid | － *7 | Maximum 1 mm *7 | Maximum 2 mm *7 | Maximum 3 mm *7 | ||||
| Viscosity Limit | Maximum 0.5 Pa·s | Maximum 1 Pa·s | Maximum 2 Pa·s | Maximum 2.5 Pa·s | ||||
| Temp Range | Ambient | 0~70 °C | ||||||
| Liquid Temperature | 0~80 °C | |||||||
| Noise Level | 71 dB | 82 dB | 85 dB | |||||
| Suction Head Lift | Ball Valve | － | 0.5 m | 0.7 m | 2 m | |||
| Flat Valve | 1.5 m | 2 m | 3 m | 4 m | ||||
| Net Weight | 3.4 kg | 7.2 kg | 15.5 kg | 31.0 kg | 51.0 kg | |||
*1 DP-25FE and DP-38FE are built to order, so please confirm the delivery.
*2 The DP-10FE and DP-20FE suction port and discharge port can be connected using a standard Rc screw and flange, as well as NPT screw and ANSI flange (special order).
*3 The pipe length from the air supply valve (solenoid valve, etc.) to the pump shall be 1.5 m or less. If piping from the exhaust port of the air supply valve to another location, the pipe length to the end of the exhaust port shall be 5 m or less.
*4 The maximum supply air pressure for a type with resin-made pump body will depend on the liquid temperature.
*5 The water discharge is provided as a rough approximation only. The discharge will differ depending on factors such as the liquid to be transferred and the piping conditions.
*6 The maximum flow rate is based on test data using a Φ8 x Φ6 x 2.5 m connection air tube, 0.5 MPa of supply air pressure, purified water, head 0, and at room temperature. However, the DP-25FE and DP-38FE are based on test data using a Φ12 x Φ10 x 2.5 m connection air tube and 0.7 MPa of supply air pressure.
*7 The flat valve type cannot handle slurry. • In the case of standalone pump sales for the DP-FE series, only a 2.5 m sensor cable is included, and the pump controller (MFC-24), solenoid valve, etc. are sold separately.
