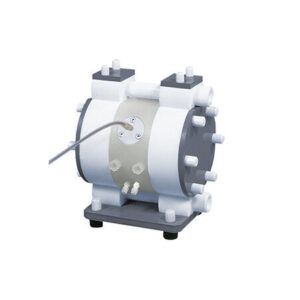

DP-FE/D series
DP-FE/D series
Corrosion-resistant Non-metallic Specification! Safe Design with Intrinsically Explosion-proof Specification.
A non-metallic model diaphragm pump that uses resin as the material even for the main parts. Even if the one-piece diaphragm is damaged, metal ion contamination is prevented, and the pump can be operated with peace of mind in a corrosive environment, so it is suitable for CMP slurry transfer.
A fiber-optic stroke sensor is employed, enabling use in explosion-proof areas.
Explosion-proof, standard seal specification. The flat valve type is optional (built-to-order). Contact us for more details.
■ Main Applications
Transfer of Flammable Liquids in Explosion-proof Areas/Transfer of Chemicals, Pure Water, and Waste Liquids
Features
■ Seal Specification
| Standard Seal A PVC seal that absorbs changes in the dimensions of the join section for the fluorine resin pump. |
|
■ Non-Metallic Specification
| One-piece Diaphragm Center disk less diaphragm with integrated center disk and diaphragm. Replacement is extremely simple, and it has excellent running costs. | Resin Center Rod By using resin as the center rod material, non-metal is achieved. |
|
|
■ Employs Fiber-optic Stroke Sensor Control.
Employs a fiber-optic stroke sensor control model that can be used even in explosion-proof areas.
◆ Sensor Control “Fiber-Optic Stroke Sensor”
| Non-metal, Explosion-proof Model By including a fiber-optic stroke sensor, the pump can be used in explosion-proof areas. |
|
| Sensor Control = Stable Reciprocating Motion A proximity sensor detects the stroke end of the diaphragm, and the pump controller receiving the sensor signal controls the switching of the center exhaust type 3-position 5-port solenoid valve. |
| Optional Counter Connection Enables Stroke Management By counting the number of times the center rod has moved, it is possible to determine when parts need to be replaced. |
|
Specifications
| Valve Shape and Model Number | |||||||

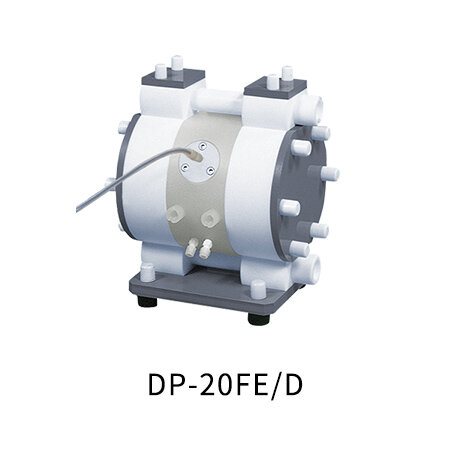

| Ball Valve | DP-10FE/D | DP-10FE/D | DP-20FE/D | DP-20FE/D | DP-25FE/D | DP-38FE/D | |
| Flat Valve | Built to order, so please contact us. | ||||||
| Body Material | |||||||
| Center Body | Polypropylene (PPG) | HDPE, Polypropylene (PPG) | |||||
| Pump Body | PTFE | ||||||
| Wetted Parts Material | |||||||
| Diaphragm PTFE | PTFE | ||||||
| Valve PTFE | |||||||
| Valve Seat PTFE | |||||||
| Valve Stopper PTFE | |||||||
| Center Disk PFA | Integrated with diaphragm | ||||||
| Specifications | |||||||
| Nominal Diameter | 3/8″ (10 mm) | 3/4″ (20 mm) | 1″ (25 mm) | ||||
| Material Connection | Suction Port | Rc 3/8 (F) | JIS flange 10K 10A equivalent | Rc 3/4 (F) | JIS flange 10K 20A equivalent | JIS flange 10K 25A equivalent | |
| Discharge Port | |||||||
| Air Connection | Supply Port | Rc 1/4 x 2 (Shared supply and exhaust port x 2) *1 | Rc 1/2 x 2 (Shared supply and exhaust port x 2)*1 | ||||
| Exhaust Port | |||||||
| Air Supply Pressure | 0.2~0.5 MPa *2 | ||||||
| Maximum Discharge Pressure | 0.5 MPa | ||||||
| Water Discharge/Cycle | 60 mL *3 | 180 mL *3 | 300 mL *3 | 560 mL *3 | |||
| Maximum Flow Rate | 20 L/min *4 | 45 L/min *4 | 60 L/min *4 | 70 L/min *4 | |||
| Maximum Air Consumption | 350 L/min (ANR) | 450 L/min (ANR) | 900 L/min (ANR) | 1000 L/min (ANR) | |||
| Maximum Size Solid | Maximum 1 mm *5 | Maximum 2 mm *5 | Maximum 3 mm *5 | ||||
| Viscosity Limit | Maximum 1 Pa·s | Maximum 2 Pa·s | Maximum 2.5 Pa·s | ||||
| Temp Range | Ambient | 0~70 °C | |||||
| Liquid Temperature | 0~80 °C | ||||||
| Noise Level | 82 dB | 85 dB | |||||
| Net Weight | 6.3 kg | 13.8 kg | 28.4 kg | 51.0 kg | |||
*1 The pipe length from the air supply valve (solenoid valve, etc.) to the pump shall be 1.5 m or less. If piping from the exhaust port of the air supply valve to another location, the pipe length to the end of the exhaust port shall be 5 m or less.
*2 The compressed air quality shall satisfy quality classes both 2 and 3 specified in “JIS B8392-1:2000 Compressed air for general use.”
(Maximum particle diameter: 1 μm, Maximum open air pressure: －20°C, Maximum oil concentration: 0.1 mg/m3)
The maximum supply air pressure of a type with a resin-made pump body depends on the liquid temperature.
*3 The water discharge is provided as a rough approximation only. The discharge will differ depending on factors such as the liquid to be transferred and the piping conditions.
*4 The maximum flow rate is based on test data using a Φ8 x Φ6 x 2.5 m connection air tube, 0.5 MPa of supply air pressure, purified water, head 0, and at room temperature. However, the DP-25FE and DP-38FE are based on test data using a Φ12 x Φ10 x 2.5 m connection air tube and 0.7 MPa of supply air pressure.
*5 The flat valve type cannot handle slurry. • In the case of standalone pump sales for the DP-FE/D series, only a 5.0 m sensor cable is included, and the pump controller (MFC-24), solenoid valve, etc. are sold separately.
